Document loading

Please refer Formats for information about what file-types can be displayed.

Document Loading

Drag & Drop

Documents can simply be display by dragging them from your computer and dropping them in the according area of the jadice web viewer.

When you start dragging, the file-open-dialog will be automatically opened.

Open File

URL

When you open the viewer and pass a request-param named u, the document will be loaded directly. The u-param accepts a URL-encoded Source that looks like that:

{
  "uris":[
    "https://www.digbib.org/Franz_Kafka_1883/Die_Verwandlung_.pdf"
  ]
}

The URL to open that document will look as follows:

https://web-viewer.jadice.com/?u=%7B%0A%20%20%22uris%22%3A%5B%0A%20%20%20%20%22https%3A%2F%2Fwww.digbib.org%2FFranz_Kafka_1883%2FDie_Verwandlung_.pdf%22%0A%20%20%5D%0A%7D

tip

If you provide more than one URI, the documents are loaded in the given order and displayed as a single merged document.

JavaScript API

It is possible to load documents via the JavaScript API. The syntax is simplified form of the "fusion collection" that is used in other levigo products. A more detailed description can be found here.

const compositePaged = {
    pageSequences: [{
        mediaType: "application/pdf",
        contentURI: "https://www.digbib.org/Franz_Kafka_1883/Die_Verwandlung_.pdf"
    }],
    type: "compositePaged"
}

window.viewerApi.collectionApi.showCompositePaged(compositePaged)

Loading Multiple documents

To get a selection of multiple documents you can achieve this with the JavaScript API as follows:

const collection = {
    elements: [
        {
            specification: {
                type: "compositePaged",
                pageSequences: [
                    {
                        mediaType: "application/pdf",
                        contentURI: "https://www.digbib.org/Franz_Kafka_1883/Der_Prozess_.pdf",
                    }
                ]
            },
            metadata: {override_page_sequence_name: "Der Prozess", override_page_sequence_description: "Franz Kafka: Der Prozess"}
        },
        {
            specification: {
                type: "compositePaged",
                pageSequences: [
                    {
                        mediaType: "application/pdf",
                        contentURI: "https://www.digbib.org/Franz_Kafka_1883/Das_Urteil_.pdf"
                    }
                ]
            },
            metadata: {override_page_sequence_name: "Das Urteil", override_page_sequence_description: "Franz Kafka: Das Urteil"}
        }
    ]
};

window.viewerApi.collectionApi.showCollection(collection);

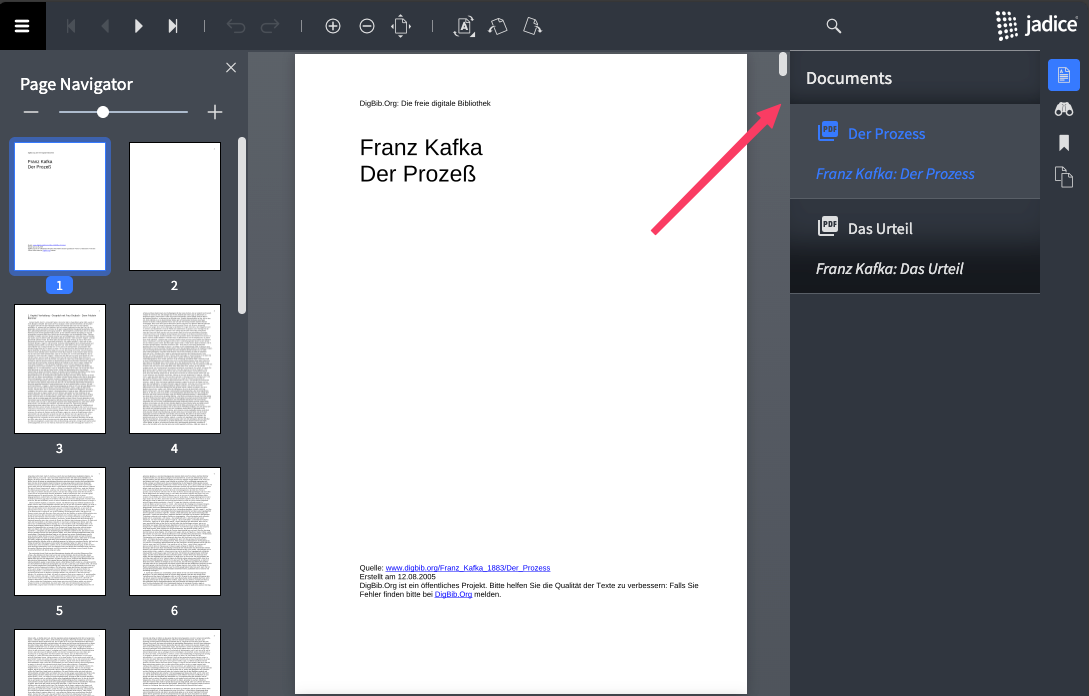

This will enable the document selection sidebar:

Via URL (c parameter)

The request-param c accepts the same collection object as viewerApi.collectionApi.showCollection. A single URL can therefore open several documents in the document sidebar. Each element may carry:

• a name and a description (metadata.override_page_sequence_name, metadata.override_page_sequence_description)
• the media type (specification.pageSequences[].mediaType)
• annotation URIs (specification.annotationData, see below)

{
  "elements": [
    {
      "metadata": { "override_page_sequence_name": "Contract" },
      "specification": {
        "type": "compositePaged",
        "pageSequences": [
          { "mediaType": "application/pdf", "contentURI": "https://example.com/a.pdf" }
        ],
        "annotationData": [["https://example.com/a.xml"]]
      }
    }
  ]
}

The JSON value must be URL-encoded:

https://web-viewer.jadice.com/?c=%7B%22elements%22%3A%5B%7B%22metadata%22%3A%7B%22override_page_sequence_name%22%3A%22Contract%22%7D%2C%22specification%22%3A%7B%22type%22%3A%22compositePaged%22%2C%22pageSequences%22%3A%5B%7B%22mediaType%22%3A%22application%2Fpdf%22%2C%22contentURI%22%3A%22https%3A%2F%2Fexample.com%2Fa.pdf%22%7D%5D%2C%22annotationData%22%3A%5B%5B%22https%3A%2F%2Fexample.com%2Fa.xml%22%5D%5D%7D%7D%5D%7D

The previous short form c=[{"uri": "…"}, …] keeps working. The viewer tells the two forms apart by the JSON type: an array is the short form, an object is a collection. The short form cannot carry annotation URIs.

note

If the value of c is invalid — for example an element without specification.pageSequences[0].contentURI — the viewer opens none of the documents and shows an error dialog stating the reason.

Loading Annotation Streams for Documents

To associate one or more annotation streams with each document in a compositePaged document, add an annotationData array to your compositePaged specification. Each entry in annotationData corresponds, in order, to a single document and may itself contain zero or more annotation-URI strings.

const collection = {
    elements: [
        {
            specification: {
                type: "compositePaged",
                pageSequences: [
                    {
                        mediaType: "application/pdf",
                        contentURI: "https://www.digbib.org/Franz_Kafka_1883/Der_Prozess_.pdf",
                    }
                ],
                annotationData: [
                	["http://example.com/annotation101.xml"]
                ]
            },
            metadata: {override_page_sequence_name: "Der Prozess", override_page_sequence_description: "Franz Kafka: Der Prozess"}
        }
    ]
};
window.viewerApi.collectionApi.showCollection(collection);

How It Works

• pageSequences - Defines each document’s media type and source URI.

• annotationData - An array of arrays, where each inner array holds the annotation-URI strings for the corresponding document in pageSequences.

  • An empty inner array ([]) indicates no annotations for that document.

  • Multiple URIs may be provided to load several annotation streams.

  • Note: with the current webtoolkit version only the annotation stream that is read last stays visible. Provide one annotation stream per document.

Example: Multiple Documents with Variable Annotations

annotationData: [
    ["http://example.com/annotation101.xml", "http://example.com/annotation102.xml"], // annotation data for the first document -> two annotation streams
    [], // annotation data for the second document -> empty
    ["http://example.com/annotation301.xml"] // annotation data for the third document -> one annotation stream
]
